GSM Gateway
GSM Gateway
*astTECS GSM Gateway offers a powerful and flexible GSM solution for the Open Source PBX.
Product bundles:
- 1 Port
- 4 Ports
- 8 Ports
- 16 Ports
- 32 Ports
GSM Integration – 50% cost savings
* astTECS gateway converts your landline to mobile calls into mobile to mobile calls. Thus helps in reducing 50% of your Telecom expenses.

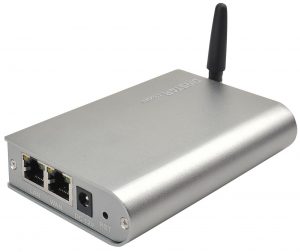

GSM Gateway – 1 Port
GSM Gateway : Single Port
*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.
Product Highlight:
Based on IP and GSM Network
Product Description for 1 Port GSM Gateway
Features:
- Calling Type: Terminate/Originate calls
- IVR Voice prompt: Two stage dialing
- Call handling:One stage dialing and configurable dial plan
- DTMF:RFC2833,SIP,INFO
- Routing rules:Port Group,IP Group,up to 32 routing rules
Product Benefits:
- Provides a flexible network configuration, powerful features, and good voice quality
Technical Specifications:
- Mobile ports: 1 port GSM LED Indicators: Power,Run,Signal strength indicator
The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.
Product Highlight:
- The GXW series includes two models with 4 or 8 ports respectively.
- Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
- Manageability, a simple configuration, superb voice and video quality and feature rich functionality
- Based on open industry standards
Product Description for 4 Port GSM Gateway
Features:
- 4 FXO port media gateway.
- Video surveillance port (Available in HW revision 1 only)
- External power supply
- Two RJ-45 ports (switched or routed)
- TFTP and HTTP firmware upgrade support
- Multiple SIP accounts, multiple SIP profiles (choice of 3 profiles per account)
- Supports Audio Codecs: G711U/A, G723, G729A/B and GSM
- Supports Video Codecs: H.264
- G.168 – echo cancellation
- Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
- Selectable, multiple LBR coders per channel
- T.38 compliant
Hardware Specifications:
| Ports | 4 |
| LAN Interface | 2xRJ45 10/100Mbp |
| LED | 84LEDs (GREEN) |
| Dimension[L x W x H] | 225mm (L) x 172mm (W) x 42mm (H) |
| Power Input | 100-240V AC, 50/60Hz, 0.5A Max |
| Power Input | 12V DC, 1.25A |
| Wight | Weight 0.29 lbs (3.5 oz) |
| Temperature | 32~104°F |
| Humidity | 10% – 90% (non-condensing) |
| Compliance | FCC, CE |
| Telephone Interface | FXO, RJ11 |
| Voice Compression | G.711U, G711A, G.723, G.729A/B, GSM |
| FAX | Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax pass-through |
| DTMF Method | Flexible DTMF transmission method, User interface of In-audio, RFC2833, and SIP Info |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.
Product Highlight:
- The GXW series includes two models with 4 or 8 ports respectively.
- Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments.
- Manageability, a simple configuration, superb voice and video quality and feature rich functionality.
- Based on open industry standards.
Product Description for 8 Port GSM Gateway
Product Features:
- 8 FXO port media gateway.
- Video surveillance port (Available in HW revision 1 only)
- External power supply
- Two RJ-45 ports (switched or routed)
- TFTP and HTTP firmware upgrade support
- Multiple SIP accounts, multiple SIP profiles (choice of 3 profiles per account)
- Supports Audio Codecs: G711U/A, G723, G729A/B and GSM
- Supports Video Codecs: H.264
- G.168 – echo cancellation
- Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
- Selectable, multiple LBR coders per channel
- T.38 compliant
Hardware Specifications:
| Ports | 4 |
| LAN Interface | 2xRJ45 10/100Mbp |
| LED | 84LEDs (GREEN) |
| Dimension[L x W x H] | 225mm (L) x 172mm (W) x 42mm (H) |
| Power Input | 100-240V AC, 50/60Hz, 0.5A Max |
| Power Input | 12V DC, 1.25A |
| Wight | Weight 0.29 lbs (3.5 oz) |
| Temperature | 32~104°F |
| Humidity | 10% – 90% (non-condensing) |
| Compliance | FCC, CE |
| Telephone Interface | FXO, RJ11 |
| Voice Compression | G.711U, G711A, G.723, G.729A/B, GSM |
| FAX | Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax pass-through |
| DTMF Method | Flexible DTMF transmission method, User interface of In-audio, RFC2833, and SIP Info |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.
Product Highlight:
Based on IP and GSM Network

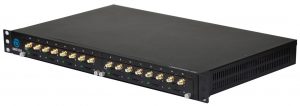

Product Description for 16 Port GSM Gateway
Product Features
- 8/16 GSM/CDMA Channels
- GSM: Quad-band 850/900/1800/1900MHz
- CDMA: 800MHz
- PSTN and VoIP Hotline
- Up to 16 concurrent calls
- Flexible dial and manipulations rules
- SMS sending & receiving USSD
- Open API for SMS/USSD BCCH Carrier Selection
- PIN Code Management
- Remote SIM Card Management (SIM Cloud)
Product Benefits
- Provides a flexible network configuration, powerful features, and good voice quality
Technical Specification
- Power – 220 VAC
- Power consumption – 38W
- Dimension – 440mm * 270mm * 44mm
- Weight – 3.6Kg
- GSM Channels – 16
- Ethernet Interface – 2*LAN, 10/100Mbps Base-T, RJ-45
*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.
Product Highlight:
- Based on IP and GSM Network
Product Description for 32 Port GSM Gateway
Features
- 32/24/16/8 GSM/CDMA Channels
- GSM: Quad-band 850/900/1800/1900MHz
- CDMA: 800MHz
- PSTN and VoIP Hotline
- Up to 32 concurrent calls
- Flexible dial and manipulations rules
- SMS sending & receiving USSD
- Open API for SMS/USSD BCCH Carrier Selection
- PIN Code Management
- Remote SIM Card Management (SIM Cloud)
Product Benefits
- Provides a flexible network configuration, powerful features, and good voice quality
Technical specification:
- Power – 100 to 220 VAC
- power consumption – 68W
- Dimension – 440*270*75mm
- Weight – 6.4 Kg
- GSM Channels – 32
- Ethernet Interface – 2*LAN, 10/100Mbps Base-T, RJ-45
