Open Source IP PBX System

This package consists of features that can be adapted to suit all requirements, from small to large enterprises.

  • Mini PBX – IP PBX for up to 10 subscribers, asterisk installed.
  • ast e25 – IP PBX for up to 25 subscribers, asterisk installed.
  • ast e100 – IP PBX for up to 100 subscribers, asterisk installed.
  • ast e200 – IP PBX for up to 200 subscribers, asterisk installed.
  • ast e300 – IP PBX for up to 300 subscribers, asterisk installed.
  • ast e500 – IP PBX for up to 500 subscribers, asterisk installed.
  • ast e1000 – IP PBX for up to 1000 subscribers, asterisk installed.

Add on features:

  • GSM integration
  • PRI integration

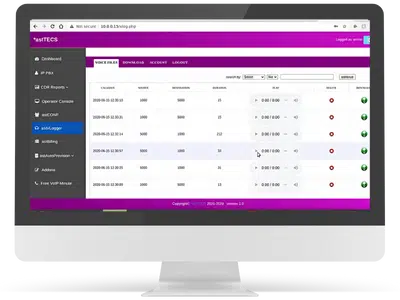

  • V Logger – Voice logger, a digital multi-channel voice logging, call monitoring and recording software.
  • CRM – a Customer relationship management software
  • Receptionist Console – providing a user interface for receptionists to take and direct call.


*ast miniPBX

16 Ext./5 Calls + IP-PBX + WiFi/VoIP + Asterisk

astTECS Mini PBX : The world’s smallest IP PBX

*ast Mini IPPBX is the *asterisk based IPPBX which support 16 Subscribers. *astTECS Mini PBX which is the new generation technology in PBX world and also used widely in developed countries, Mini IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces and *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IPPBX 16 Sip Extension.
  • 5 Simultaneous Calls.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees.
  • Connect with various interfaces like PRI, Analog, GSM, VOIP. Through Additional Gateway.
  • One year Hardware AMC.


Product Description for *ast mini PBX

Product Features:

  • Wi-Fi Router
  • 9 Level IVR
  • Conferences
  • Voice Mail
  • Queues
  • Skype Compatible ( SIP)
  • Ring Group
  • Follow Me
  • ACD
  • Call Details Report
  • Voice recording system ( Optional )
  • Massage waiting Indicator
  • DTMF

Product Details

Wifi- Router
  • Connect directly your Smart Phones as Extension. ( SIP )
Call Queue
  1. Music on Hold per queue.
  2. Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Intreactive Voice responce )
  1. Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  2. Extension Dialing – Allow the callers to dial an extension at any time.
  3. Send to Voice Mail.
Voice Mail &
  1. Voice Mail Set up.
  2. Voice Mail Access.
Voice Recording
  • Call record will automatically store in the external disk
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Distributed Office setup
  • Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Multi Trunking Trough Additional Gateway
  1. Connect with Analog/PSTN/CO Lines.
  2. Connect With GSM Trunk.
SIP Trunking
  1. Ready to use the sip-trunking and as well the SIP Client,
  2. Create Multiple VOIP accounts.
Call Routing
  1. Location Based routing.
  2. Skill Based routing.
  3. DID Based Routing.

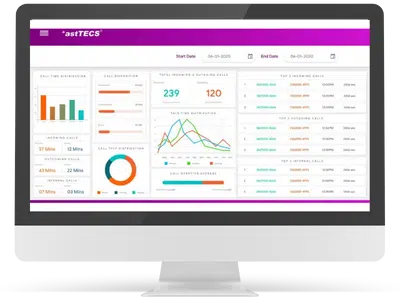

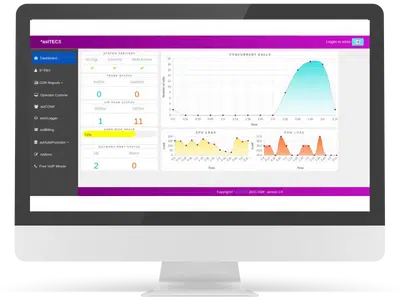

Reports
  • Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Multi Phones Connectivity Connect with differnet Phones Like:

  • IP PHONE.
  • Analog Phone.
  • Softphone.
  • Smart Phone (Mobiles).
  • DECT phones

Technical specification

Hardware details.
Protocal

  • VoIP ( SIP )
Interfaces

  • LAN: 4xRJ45 10/100MB Ethernet port
  • WAN: 1xRJ45 10/100MB Ethernet port
Software

  • Asterisk : astFIN
  • Version : 5.5
Power Consumption

  • 12 V / 1.0 Amp
contact-sales buy-online

*ast e25

25 Ext. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 25 subscribers

*ast e25 is an *asterisk based IPPBX solution which support 25 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 25 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e25

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Value

Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.
Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.
Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Video Conferencing Available only on above e100
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS
  • Dial a code to connect to a separate overhead paging and announcement system.
  • Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking
  1. Connect with PRI ISDN E1, T1.
  2. Connect with Analog/PSTN/CO Lines.
  3. Connect With GSM Trunk.
SIP Trunking
  • Ready to use the sip-trunking and as well the SIP Client,
  • Create Multiple VOIP accounts.
Call Routing
  • Location Based routing.
  • Skill Based routing.
  • DID Based Routing.
Barge IN & Listen
  • Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
  • Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,

  1. CRM.
  2. ERP.
  3. SMS.
  4. Click to Call.

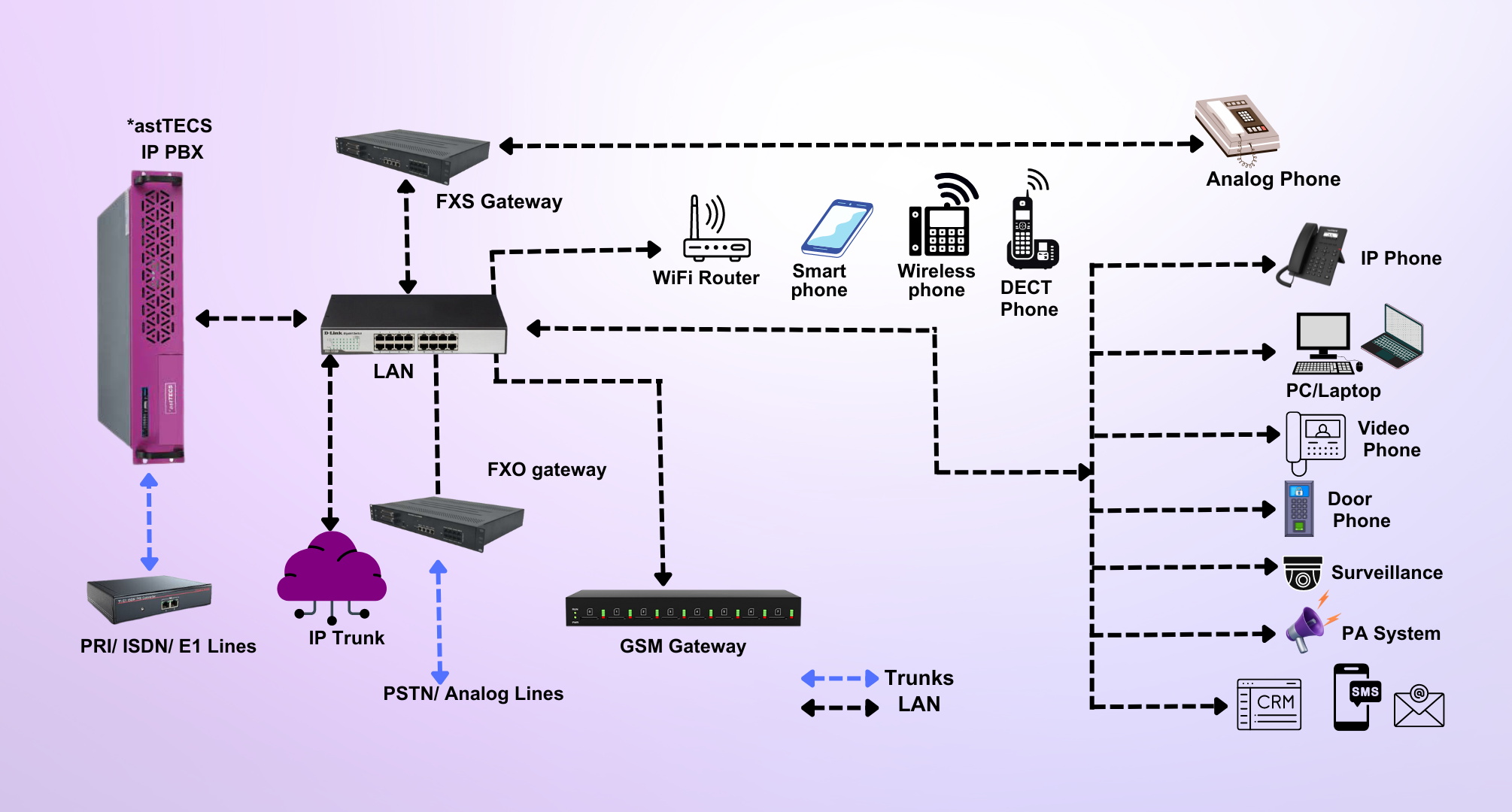

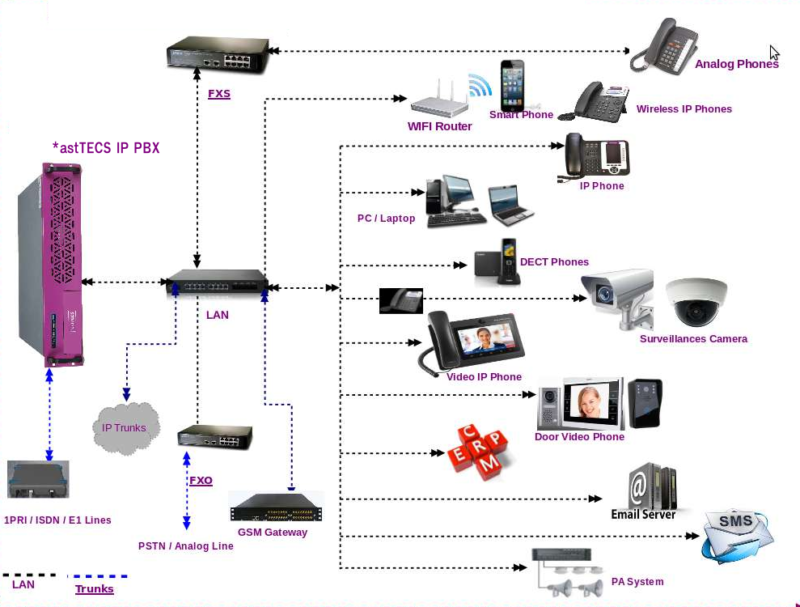

Multi Phones Connectivity Connect with different Phones Like:

  1. IP PHONE.
  2. Analog Phone
  3. Soft Phone
  4. Smart Phone (Mobiles).
  5. DECT phones

Technical specification

Hardware details.

Server: 1U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e50

50 Ext. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 50 subscribers

*ast e50 is the *asterisk based IPPBX solution which support 50 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 50 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e50

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.
Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.
Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Video Conferencing Available only on above e100
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS
  • Dial a code to connect to a separate overhead paging and announcement system.
  • Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking
  1. Connect with PRI ISDN E1, T1.
  2. Connect with Analog/PSTN/CO Lines.
  3. Connect With GSM Trunk.
SIP Trunking
  • Ready to use the sip-trunking and as well the SIP Client,
  • Create Multiple VOIP accounts.
Call Routing
  • Location Based routing.
  • Skill Based routing.
  • DID Based Routing.
Barge IN & Listen
  • Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
  • Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,

  1. CRM.
  2. ERP.
  3. SMS.
  4. Click to Call.
Multi Phones Connectivity Connect with different Phones Like:

  1. IP PHONE.
  2. Analog Phone
  3. Soft Phone
  4. Smart Phone (Mobiles).
  5. DECT phones
Server: 1U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e100

100 Ext. +Video Conf. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 100 subscribers

*ast e100 is the *asterisk based IPPBX solution which support 100 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 100 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e100

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Web based Company Receptionist
  • Calls in queue, pick which calls to answer.
  • Active Calls Show the list of active calls and engaged extensions.
  • Availability, IP Phone/soft phone status like off-hook, on-hook, ringing.
  • Call Park.
  • Drag and Drop call transfer.
  • Voicemail transfer.
  • Call Toggle – Allwos the operator to shift between calls
Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.
Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.
Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS Dial a code to connect to a separate overhead paging and announcement system.
Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking Connect with PRI ISDN E1, T1.
Connect with Analog/PSTN/CO Lines.
Connect With GSM Trunk.
SIP Trunking Ready to use the sip-trunking and as well the SIP Client,
Create Multiple VOIP accounts.
Call Routing Location Based routing.
Skill Based routing.
DID Based Routing.
Barge IN & Listen Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,CRM.
ERP.
SMS.
Click to Call.
Multi Phones Connectivity Connect with different Phones Like:IP PHONE.
Analog Phone
Soft Phone
Smart Phone (Mobiles).
DECT phones

Video Conferencing

Record and Playback *astTECS Video conferencing solution can record your meetings / lectures for later playback.
Integrated VoIP *astTECS Video conferencing supports voice over IP (VoIP) conferencing. All your users need, are speakers and a microphone to participate.
Whiteboard – A freehand tool Whiteboard controls let you annotate and call out key parts of your presentation for viewers.
Presentation The presenter can upload any PDF presentation or Microsoft office document to present, zoom, pan, and keep participants in sync.
Desktop Sharing Go beyond slides. The presenter can broadcast their desktop for all participants to see. Works on Mac, UNIX and PC
Web Cam Multiple users can share their webcam at the same time. There is no built-in limit on the number of simultaneously active webcams
Chat Module

Technical specification

Hardware details

Server: 4U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex.
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e200

200 Ext. +Video Conf. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 200 subscribers

*ast e200 is the *asterisk based IPPBX solution which support 200 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 200 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e200

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Web based Company Receptionist
  • Calls in queue, pick which calls to answer.
  • Active Calls Show the list of active calls and engaged extensions.
  • Availability, IP Phone/soft phone status like off-hook, on-hook, ringing.
  • Call Park.
  • Drag and Drop call transfer.
  • Voicemail transfer.
  • Call Toggle – Allwos the operator to shift between calls
Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.
Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.
Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS Dial a code to connect to a separate overhead paging and announcement system.
Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking Connect with PRI ISDN E1, T1.
Connect with Analog/PSTN/CO Lines.
Connect With GSM Trunk.
SIP Trunking Ready to use the sip-trunking and as well the SIP Client,
Create Multiple VOIP accounts.
Call Routing Location Based routing.
Skill Based routing.
DID Based Routing.
Barge IN & Listen Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,CRM.
ERP.
SMS.
Click to Call.
Multi Phones Connectivity Connect with different Phones Like:IP PHONE.
Analog Phone
Soft Phone
Smart Phone (Mobiles).
DECT phones

Video Conferencing

Record and Playback *astTECS Video conferencing solution can record your meetings / lectures for later playback.
Integrated VoIP *astTECS Video conferencing supports voice over IP (VoIP) conferencing. All your users need, are speakers and a microphone to participate.
Whiteboard – A freehand tool Whiteboard controls let you annotate and call out key parts of your presentation for viewers.
Presentation The presenter can upload any PDF presentation or Microsoft office document to present, zoom, pan, and keep participants in sync.
Desktop Sharing Go beyond slides. The presenter can broadcast their desktop for all participants to see. Works on Mac, UNIX and PC
Web Cam Multiple users can share their webcam at the same time. There is no built-in limit on the number of simultaneously active webcams
Chat Module

Technical specification

Hardware details

Server: 4U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex.
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e300

300 Ext. +Video Conf. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 300 subscribers

*ast e300 is an *asterisk based IPPBX solution which support 300 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 300 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e300

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Web based Company Receptionist
  • Calls in queue, pick which calls to answer.
  • Active Calls Show the list of active calls and engaged extensions.
  • Availability, IP Phone/soft phone status like off-hook, on-hook, ringing.
  • Call Park.
  • Drag and Drop call transfer.
  • Voicemail transfer.
  • Call Toggle – Allwos the operator to shift between calls
Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.



IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.



Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.
Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS Dial a code to connect to a separate overhead paging and announcement system.
Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking Connect with PRI ISDN E1, T1.
Connect with Analog/PSTN/CO Lines.
Connect With GSM Trunk.
SIP Trunking Ready to use the sip-trunking and as well the SIP Client,
Create Multiple VOIP accounts.
Call Routing Location Based routing.
Skill Based routing.
DID Based Routing.
Barge IN & Listen Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,CRM.
ERP.
SMS.
Click to Call.
Multi Phones Connectivity Connect with different Phones Like:IP PHONE.
Analog Phone
Soft Phone
Smart Phone (Mobiles).
DECT phones

Video Conferencing

Record and Playback *astTECS Video conferencing solution can record your meetings / lectures for later playback.
Integrated VoIP *astTECS Video conferencing supports voice over IP (VoIP) conferencing. All your users need, are speakers and a microphone to participate.
Whiteboard – A freehand tool Whiteboard controls let you annotate and call out key parts of your presentation for viewers.
Presentation The presenter can upload any PDF presentation or Microsoft office document to present, zoom, pan, and keep participants in sync.
Desktop Sharing Go beyond slides. The presenter can broadcast their desktop for all participants to see. Works on Mac, UNIX and PC
Web Cam Multiple users can share their webcam at the same time. There is no built-in limit on the number of simultaneously active webcams
Chat Module

Technical specification

Hardware details.

Server: 4U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex.
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e500

100 Ext. +Video Conf. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 500 subscribers

*ast e500 is an *asterisk based IPPBX solution which support 500 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 500 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e500

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Web based Company Receptionist
  • Calls in queue, pick which calls to answer.
  • Active Calls Show the list of active calls and engaged extensions.
  • Availability, IP Phone/soft phone status like off-hook, on-hook, ringing.
  • Call Park.
  • Drag and Drop call transfer.
  • Voicemail transfer.
  • Call Toggle – Allwos the operator to shift between calls
Call Queue
  • Music on Hold per queue.
  • Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response )
  • Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
  • Extension Dialing – Allow the callers to dial an extension at any time.
  • Send to Voice Mail.
Call Control
  • Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
  • Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
  • Do not disturb.
  • Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
  • Parallel Ringing.
  • Follow me.



Voice Mail & Voice mail To e-mail
  • Voice Mail Set up.
  • Voice Mail Access.
  • Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing
  1. 3 way conferencing from the IP Phone.
  2. Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
  3. Dial-in Conference.
  4. Dia-out Conference
Faxing
  1. Out going fax.
  2. Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS Dial a code to connect to a separate overhead paging and announcement system.
Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking Connect with PRI ISDN E1, T1.
Connect with Analog/PSTN/CO Lines.
Connect With GSM Trunk.
SIP Trunking Ready to use the sip-trunking and as well the SIP Client,
Create Multiple VOIP accounts.
Call Routing Location Based routing.
Skill Based routing.
DID Based Routing.
Barge IN & Listen Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,CRM.
ERP.
SMS.
Click to Call.
Multi Phones Connectivity Connect with different Phones Like:IP PHONE.
Analog Phone
Soft Phone
Smart Phone (Mobiles).
DECT phones

Video Conferencing

Record and Playback *astTECS Video conferencing solution can record your meetings / lectures for later playback.
Integrated VoIP *astTECS Video conferencing supports voice over IP (VoIP) conferencing. All your users need, are speakers and a microphone to participate.
Whiteboard – A freehand tool Whiteboard controls let you annotate and call out key parts of your presentation for viewers.
Presentation The presenter can upload any PDF presentation or Microsoft office document to present, zoom, pan, and keep participants in sync.
Desktop Sharing Go beyond slides. The presenter can broadcast their desktop for all participants to see. Works on Mac, UNIX and PC
Web Cam Multiple users can share their webcam at the same time. There is no built-in limit on the number of simultaneously active webcams
Chat Module

Technical specification

Hardware details.

Server: 4U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex.
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

*ast e1000

1000 Ext. +Video Conf. +IVR +Voice Mail +Fax +IP-PBX +Asterisk

IP PBX : 1000 subscribers

*ast e1000 is the *asterisk based IPPBX solution which support 1000 Subscribers. *astTECS IPPBX which is the new generation technology in PBX world and also used widely in developed countries, IPPBX to help you easily transition from simple telephony to feature-rich UC solution. Connect with various interfaces. *astTECS IPPBX will connect all your remote offices through VOIP.

Product Highlight:

  • IP PBX 1000 Extension.
  • Asterisk Installed/Open Source.
  • Easy Setup & Management.
  • No licensing Fees
  • Connect with various interfaces like PRI, Analog, GSM, VOIP.
  • One year Hardware AMC.


Product Description for *ast e1000

Product Features

  • Automated Attendant
  • Black List
  • Blind transfer
  • Call Details Record.
  • Call Forward on No Answer
  • Call Forward Variable
  • Call Monitoring
  • Call Parking
  • Call Queuing
  • Call Recording
  • Call Retrieval
  • Call Routing (DID & ANI)
  • Call Snooping
  • Call Transfer Call Waiting
  • Caller ID
  • Caller ID on Call Waiting
  • Database Store / Retrieve
  • Database Integration
  • Dial by Name
  • Direct Inward System Access
  • Distinctive Ring
  • Distributed Universal Number Discovery (DUNDi™)
  • Do Not Disturb
  • Fax Transmit and Receive
  • Music On Transfer
  • Flexible Extension Logic
  • Interactive Directory Listing
  • Interactive Voice Response (IVR)
  • Local and Remote Call Agents
  • Music On Hold
  • Caller ID Blocking
  • Conference Bridging

Product Details

Web based Company Receptionist Calls in queue, pick which calls to answer.
Active Calls Show the list of active calls and engaged extensions.
Availability, IP Phone/soft phone status like off-hook, on-hook, ringing.
Call Park.
Drag and Drop call transfer.
Voicemail transfer.
Call Toggle – Allwos the operator to shift between calls
Call Queue Music on Hold per queue.
Caller Experience – Let the caller hear the phone ring instead of listening to music on hold.
IVR ( Interactive Voice response ) Ringing Options – Ring All, Round Robin, Fewest Calls, Least Recently Called, Random, and In Order.
Extension Dialing – Allow the callers to dial an extension at any time.
Send to Voice Mail.
Call Control Call Transfer – you can easily transfer incoming calls or active calls to another extension. Set the transfer rules for incoming calls so you can check the call first, then transfer, transfer without checking, or send the call straight to voicemail.
Call Pick up – You can set up Call Pickup groups so some employees can pick up calls ringing on other extensions by dialing a short code on their own phones. You determine who has this permission and which calls they can pick up.
Do not disturb.
Hold – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
Call Parking – Put a call on Hold using the button on your IP phone, or from the Switchboard. You can customize the Music on Hold that plays until you resume the call.
Parallel Ringing.
Follow me.
Voice Mail & Voice mail To e-mail Voice Mail Set up.
Voice Mail Access.
Voice mail to email or to any email client.
Voice Recording Automatically record calls coming in, going out, or even internally, based on the settings you define
Conferencing 3 way conferencing from the IP Phone.
Meet me conference- With a Meet Me Conference Center, each of your phone extensions can have its own conference room.
Dial-in Conference.
Dia-out Conference
Faxing Out going fax.
Incoming Fax.
Distributed Office setup Connects Multiple Offices through MPLS or VPN. Branch offices can be added to the IP server through an INTERNET connection.
Paging/PAS Dial a code to connect to a separate overhead paging and announcement system.
Dial a code and connect directly to a built-in one-way announcement speaker on one or more phones
Multi Trunking Connect with PRI ISDN E1, T1.
Connect with Analog/PSTN/CO Lines.
Connect With GSM Trunk.
SIP Trunking Ready to use the sip-trunking and as well the SIP Client,
Create Multiple VOIP accounts.
Call Routing Location Based routing.
Skill Based routing.
DID Based Routing.
Barge IN & Listen Barge in: Barge in on both channels. The manager channel is joined onto the spied-on and bridged channel, and all parties can hear each other.
Listen: Monitor an agents call/ Extensions. The manager can hear both the spied-on and bridged channels, but they cannot hear the manager.
Whisper Whisper to the agent. The manager can hear both the spied-on and bridged channels, and the spied-on channel (agent) can also hear the manager, but not the bridged channel, hence “whisper.”
Reports Complete report on day to day, weekly reports, Monthly report, Extension wise report,
Third party Integration Connects any 3 party Integration Like,CRM.
ERP.
SMS.
Click to Call.
Multi Phones Connectivity Connect with different Phones Like:IP PHONE.
Analog Phone
Soft Phone
Smart Phone (Mobiles).
DECT phones

Video Conferencing

Record and Playback *astTECS Video conferencing solution can record your meetings / lectures for later playback.
Integrated VoIP *astTECS Video conferencing supports voice over IP (VoIP) conferencing. All your users need, are speakers and a microphone to participate.
Whiteboard – A freehand tool Whiteboard controls let you annotate and call out key parts of your presentation for viewers.
Presentation The presenter can upload any PDF presentation or Microsoft office document to present, zoom, pan, and keep participants in sync.
Desktop Sharing Go beyond slides. The presenter can broadcast their desktop for all participants to see. Works on Mac, UNIX and PC
Web Cam Multiple users can share their webcam at the same time. There is no built-in limit on the number of simultaneously active webcams
Chat Module

Technical specification

Hardware details.

Server: 4U Industrial grade Rack mountable Server.
Codecs: ADPCM, G.711(A-Law & u-Law) G.722, G.723.1 (pass through),G.726, G.729(through purchase of a commercial license), GSM,iLBC, Linear,LPC-10 Speex.
PRI card: T1 / E1 port with optimum PCI interface.
Temperature: 0-50° C
Power:
Protocol

  • ISDN: PRI DSS 1 (Q931, National variant)
  • VoIP: SIP, H.323, MGCP, SCCP, IAX2
  • Mobile: GSM 850/1800/1900 MHZ channels.
Interfaces

  • Network interface: 2X Ethernet 10/100 base-RJ-45
  • ISDN: PRI interface (optional)
  • Mobile: 4GSM (optional) 1 antenna/4 channels, 1 SIM/channel
  • FXO & FXS
Software

  • Asterisk : 11.10.0
  • Free PBX: 2.11
  • OS : Cent OS
Power Consumption

  • 100 / 240 AC
  • 60 – 50 mHz
  • 6 – 3 Amp
contact-sales buy-online

IP PBXIP PBXIP PBX

Get more information on IP PBX with Integrated CRM to boost your organization productivity. Click here
