GSM Gateway

GSM Gateway

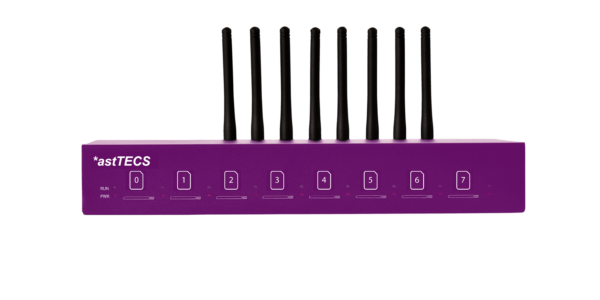

*astTECS GSM Gateway offers a powerful and flexible GSM solution for the Open Source PBX.

Product bundles:

  • 1 Port
  • 4 Ports
  • 8 Ports
  • 16 Ports
  • 32 Ports

GSM Integration – 50% cost savings

* astTECS gateway converts your landline to mobile calls into mobile to mobile calls. Thus helps in reducing 50% of your Telecom expenses.

GSM Gateway – 1 Port

GSM Gateway : Single Port

*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.

Product Highlight:

  • Based on IP and GSM Network

Product Description for 1 Port GSM Gateway

Features:

  • Calling Type: Terminate/Originate calls
  • IVR Voice prompt: Two stage dialing
  • Call handling:One stage dialing and configurable dial plan
  • DTMF:RFC2833,SIP,INFO
  • Routing rules:Port Group,IP Group,up to 32 routing rules

Product Benefits:

  • Provides a flexible network configuration, powerful features, and good voice quality

Technical Specifications:

  • Mobile ports: 1 port GSM LED Indicators: Power,Run,Signal strength indicator

GSM Gateway : 4 Port

The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Product Highlight:

  • The GXW series includes two models with 4 or 8 ports respectively.
  • Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
  • Manageability, a simple configuration, superb voice and video quality and feature rich functionality
  • Based on open industry standards

Product Description for 4 Port GSM Gateway

Features:

  • 4 FXO port media gateway.
  • Video surveillance port (Available in HW revision 1 only)
  • External power supply
  • Two RJ-45 ports (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts, multiple SIP profiles (choice of 3 profiles per account)
  • Supports Audio Codecs: G711U/A, G723, G729A/B and GSM
  • Supports Video Codecs: H.264
  • G.168 – echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • T.38 compliant

Hardware Specifications:

Ports 4
LAN Interface 2xRJ45 10/100Mbp
LED 84LEDs (GREEN)
Dimension
[L x W x H]
225mm (L) x 172mm (W) x 42mm (H)
Power Input 100-240V AC, 50/60Hz, 0.5A Max
Power Input 12V DC, 1.25A
Wight Weight 0.29 lbs (3.5 oz)
Temperature 32~104°F
Humidity 10% – 90% (non-condensing)
Compliance FCC, CE
Telephone Interface FXO, RJ11
Voice Compression G.711U, G711A, G.723, G.729A/B, GSM
FAX Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax pass-through
DTMF Method Flexible DTMF transmission method, User interface of In-audio, RFC2833, and SIP Info
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID

GSM Gateway : 8 Port

The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Product Highlight:

  • The GXW series includes two models with 4 or 8 ports respectively.
  • Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments.
  • Manageability, a simple configuration, superb voice and video quality and feature rich functionality.
  • Based on open industry standards.

Product Description for 8 Port GSM Gateway

Product Features:

  • 8 FXO port media gateway.
  • Video surveillance port (Available in HW revision 1 only)
  • External power supply
  • Two RJ-45 ports (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts, multiple SIP profiles (choice of 3 profiles per account)
  • Supports Audio Codecs: G711U/A, G723, G729A/B and GSM
  • Supports Video Codecs: H.264
  • G.168 – echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • T.38 compliant

Hardware Specifications:

Ports 4
LAN Interface 2xRJ45 10/100Mbp
LED 84LEDs (GREEN)
Dimension
[L x W x H]
225mm (L) x 172mm (W) x 42mm (H)
Power Input 100-240V AC, 50/60Hz, 0.5A Max
Power Input 12V DC, 1.25A
Wight Weight 0.29 lbs (3.5 oz)
Temperature 32~104°F
Humidity 10% – 90% (non-condensing)
Compliance FCC, CE
Telephone Interface FXO, RJ11
Voice Compression G.711U, G711A, G.723, G.729A/B, GSM
FAX Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax pass-through
DTMF Method Flexible DTMF transmission method, User interface of In-audio, RFC2833, and SIP Info
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID

GSM Gateway : 16 Port

*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.

Product Highlight:

  • Based on IP and GSM Network

Product Description for 16 Port GSM Gateway

Product Features

  • 8/16 GSM/CDMA Channels
  • GSM: Quad-band 850/900/1800/1900MHz
  • CDMA: 800MHz
  • PSTN and VoIP Hotline
  • Up to 16 concurrent calls
  • Flexible dial and manipulations rules
  • SMS sending & receiving USSD
  • Open API for SMS/USSD BCCH Carrier Selection
  • PIN Code Management
  • Remote SIM Card Management (SIM Cloud)

Product Benefits

  • Provides a flexible network configuration, powerful features, and good voice quality

Technical Specification

  • Power – 220 VAC
  • Power consumption – 38W
  • Dimension – 440mm * 270mm * 44mm
  • Weight – 3.6Kg
  • GSM Channels – 16
  • Ethernet Interface – 2*LAN, 10/100Mbps Base-T, RJ-45

GSM Gateway : 32 Port

*astTECS offers one stop multi – functional Gateway solution for GSM/CDMA VoIP, used to effectively implement the smooth transition between mobile and VoIP networks.

Product Highlight:

  • Based on IP and GSM Network

Product Description for 32 Port GSM Gateway

Features

  • 32/24/16/8 GSM/CDMA Channels
  • GSM: Quad-band 850/900/1800/1900MHz
  • CDMA: 800MHz
  • PSTN and VoIP Hotline
  • Up to 32 concurrent calls
  • Flexible dial and manipulations rules
  • SMS sending & receiving USSD
  • Open API for SMS/USSD BCCH Carrier Selection
  • PIN Code Management
  • Remote SIM Card Management (SIM Cloud)

Product Benefits

  • Provides a flexible network configuration, powerful features, and good voice quality

Technical specification:

  • Power – 100 to 220 VAC
  • power consumption – 68W
  • Dimension – 440*270*75mm
  • Weight – 6.4 Kg
  • GSM Channels – 32
  • Ethernet Interface – 2*LAN, 10/100Mbps Base-T, RJ-45
